Affordable Hydraulic Floor Spring Hinge for Aluminum & Glass Doors - Stainless Steel Cabinet Hinge by Manufacturers
Type: Stainless Steel inseparable Hydraulic - damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Electrolysis
Main material: stainless steel
We combined with many years of practical experience and developed a series of Cabinet Slide, hinges door, Tatami Lift. We promote mutual respect, mutual trust and mutual support in business and human relations. Our company has a professional management and sales team, we rely on stable quality and after-sales service to win the trust and praise of domestic and foreign merchants.
304/SUS304 Stainless steel cabinet door hinges with 100 degree opening angle,clip-on and inseparable are available.Our hinges are adopting high quality material ,with high quality and reasonable price,welcome to make an order right now |
Type | Stainless Steel inseparable Hydraulic - damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Finish | Electrolysis |
Main material | stainless steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/ +3.5mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |

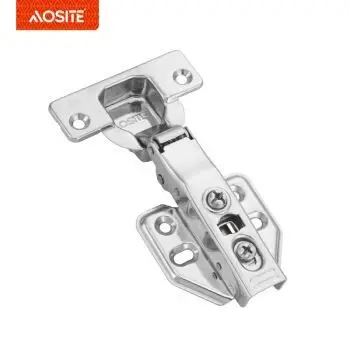

Model K12 is one way hydraulic hinges, this hinge’s main material is stainless steel,which we have 304 and SUS304 material for choice,so this product will have superior ability to anti-rust.This type of hinge is inseparable mounting plate. Our standards Includes hinges, mounting plates,.Screws and decorative cover caps are sold separately. |
PRODUCT DETAILS
TWO-DIMENSIONAL SCREWThe adjustable screw is used for distance adjustment, so both sides of the cabinet door can be more suitable. | |
EXTRA THICK STEEL SHEETThe thickness of hinge from us is double than current market,which can strengthen the service life of hinge | |
BLANK PRESSING HINGE CUPLarge area blank pressing hinge cup can enable the operation between cabinet door and hinge more steady . | |
HYDRAULIC CYLINDERHydraulic buffer makes a better effect of a quiet environment. | |
BOOSTER ARMExtra thick steel sheet increases the work ability and service life . | |
PRODUCTION DATEHigh quality permission,rejection any quality problems. |
How To Choose Cold Rolled Steel And Stainless Steel Material? The choice of cold rolled steel and stainless steel should be different from the use scenarios, if in damp places. For example, stainless steel is used in kitchen and bathroom, otherwise cold rolling steel can be used in bedroom study. |
How To Choose Your Door Overlays?
Full Overlay The full cover is called straight bending and straight arms | Door panel covers the side panel The cover is suitable for the cabinet body, which covers the side panels. |
Half Overlay Half cover is also called middle bend and small arm | Door panel covers half of the side panel The cupboard door covers the side plate, half of which has doors on both sides of the cabinet. |
Inset No cap, also called big bend, big arm. | Door panel don’t covers the side panel The door is not covered by the cabinet door, and the cabinet door is inside the cabinet. |
Sticking to the principle of 'Super High-quality, Satisfactory service', We are striving to generally be a very good business partner of you for Factory Price Aluminum&Glass Door Hydraulic Floor Spring Hinge. Over the years, with the unremitting efforts of all the staff, we have expanded the product scale, and the products are supported and trusted by the majority of consumers. What are you waiting for? Come and join us.
