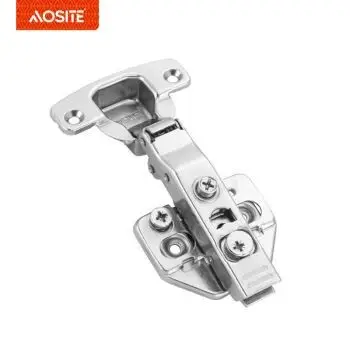

Soft Close Half Overlay Hinge - Short Arm | Furniture Hardware Manufacturers
Type: Clip on 3D hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel
Our outstanding advantage is our ability to provide users with high-quality Drawer Slide Telescopic, Clip On Shifting Hinge, AQ868 Adjustable Hinge and comprehensive and excellent services. We also promise to work jointly with business partners to elevate our cooperation to a higher level and share success together. We always adhere to the tenet of 'focus on quality and sincere service', devote ourselves to the research and development of new technologies in order to offer customers with high-quality services. After years of careful management, we have established a good reputation for high quality, low price and good service. Based on the principle of proactive and honest management, our company provides high-quality products and services to customers all over the world to create a better future!
|
Type |
Clip on 3D hydraulic damping hinge (two-way) |
|
Opening angle |
110° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Cabinets, wood layman |
|
Finish |
Nickel plated and Copper plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/+2mm |
|
Base adjustment (up/down) |
-2mm/+2mm |
|
Articulation cup altitude |
12mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
|
Product advantage: Agency market protection 48 Hours Salt-spray Test With Two-Way closing mechanism
Functional description: AQ868 3D adjustable damping Hinge has the liberty to make proper adjustments to your cabinet door with 3-Dimensional Adjustment feature. The direct adjustment features makes its easy to align door depth. A special guard prevents the overlay adjustment screw from accidentally coming undone. Mounting plates are available that permit time-saving height adjustment by cam screw.
Hinge Surface Material is the most critical factor affecting a hinge. The hinge punched out of high-quality steel is flat and smooth, with delicate hand feeling, thick and even, and soft color. But the inferior steel, obviously can see the surface rough, uneven, even with impurities.
|
PRODUCT DETAILS
|
|
|
|
|
|
|
|
|
|
|
|
|
WHO ARE WE? AOSITE furniture hardware manufacturer tried and proven cabinet hinges offer the right solution for many applications. Robust construction, reliable operation, and economical price are characteristic of this series. Assembly is quick and easy with their snap-on hinge-to-mount attachment. |
With an international vision and global service capabilities, we strive to provide customers with cost-effective Furniture Accessories Half Overlay Short Arm Soft Close Hinge products. Our company has also strengthened close cooperation with dealers at all levels to achieve zero inventory management for dealers and reduce their risks. We welcome all of the clients and friends to contact us for mutual benefits.
