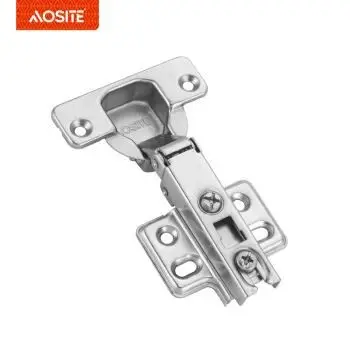

Two Way Slide-On Furniture Hinge for Cabinet Doors at a 135-Degree Angle by Manufacturers
Type: Slide-on hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Our products are broadly identified and trustworthy by people and may meet continually modifying financial and social requires of Wardrobe Handle, Tatami Pneumatic Lift, Cabinet Damper Hinge. Quality assurance is a basic requirement for establishment and maintenance of the long-term cooperation relationship of the supply chain. The common goal is the driving force and direction for all of us to unite. Only when the goal is clear can we stimulate our fighting spirit.
B03 slide on furniture hinge
*two way
*free stop
*small angle buffer
*large angle open
HINGE HOLE DISTANCE PATTERN
48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.
52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.
Type | Slide-on hinge (two-way) |
Opening angle | 110° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3.5mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
B03 slide on furniture hinge *two way *free stop *small angle buffer *large angle open
HINGE HOLE DISTANCE PATTERN 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, Salice, and Grass. These will be very difficult to source as replacements in North America. It is recommended to switch to a more commonly available cup type in that case.Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes (or dowels) is 48mm.Center of screws (dowels) is 6mm offset from the hinge cup center.
52mm Hole distance is a less common hinge cup pattern used by some cabinet makers,but it’s most popular in Korea market.This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm.Distance between screw holes /dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center. |
PRODUCT DETAILS
FAQS Q: What is your factory product range? A: Hinges/ Gas spring/ Tatami system/ Ball bearing slide. Q: Do you provide samples? Is it free or extra? A: Yes, we provide free samples. Q: How long does the normal delivery time take? A: About 45 days. Q: What kind of payments does support? A: T/T. |
We take the customer's demand as the standard, takes the advanced technology as the support, takes the scientific management as the foundation, wholeheartedly provides Hardware Cabinet Door Two Way Slide on 135degree Angle Furniture Hinge for our customers. We will work hard, strengthen management, focus on quality internally and externally. We are willing to cooperate with the special requirements of our customers and provide more perfect design ideas and encourage the industry with a cordial, honest and trustworthy attitude.
