Zinc Alloy Invisible Hinge: Durable and Concealed Gate Hinge, 180 Degree Opening
Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
To create extra value for customers is our enterprise philosophy; buyer growing is our working chase for Slide On Angle Wardrobe Hinge 90°, Tatami Lift Japanese Bed, Kitchen Damping Hinge. We're equipped with a strong product system, brand new business model and innovative service mechanism. Welcome all nice buyers communicate details of solutions and ideas with us!!
Type | Inseparable hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |

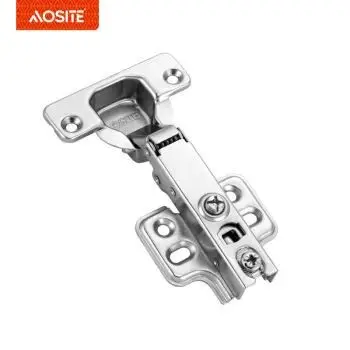

A01 INVISIBLE HINGE: Model A01 is one way inseparable hydraulic damping hinge, can automatic buffer closing. |
PRODUCT DETAILS
HOW TO CHOOSE YOUR DOOR OVERLAYS
Full Overlay This is the most common construction technique for cabinet doors. You will be able to identify if your hinge is Full overlay. The hinge arm is relatively straight with no "hump" or "crank". The Cabinet Door overlaps close to 100% on the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Half Overlay Much less common but used where space saving or material cost concerns are most important. This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features. The hinge arm starts to bend inwards with a "crank" that offsets the door. The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Inset/Embed This is a technique of cabinet door production that allows the door to sit inside the cabinet box. You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly cranked. The Cabinet Door does not overlap with the side panel but sits inside. |
Since we adhere to the corporate values of innovation, professionalism, and win-win, we perfectly integrate technology and products to provide customers with the latest Heavy Duty Gate Hinge Zinc Alloy Invisible Hinge 180 Degree Open and best services The global difficulties we are facing now will ultimately greatly change our society and daily life, forcing us to greatly change our values. We would very much welcome an opportunity to do business with you and have pleasure in attaching further details of our products.
