Aosite, since 1993
Furniture Hardware Manufacturers of Hydraulic Soft Close Cabinet Hinges

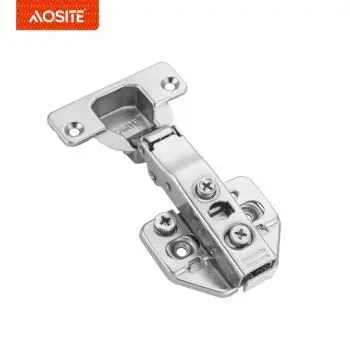

Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel
Our company focuses on quality assurance and after-sales service, and strives to build the high quality Glass Cabinet Mini Hinge, Tool Box Drawer Slides, Damping Steel Ball Slideway brand to serve our customers. Our company provide long-term excellent services to new and old users with an open mind, flexible business model and sincere and responsible attitude. While developing the Chinese market, our company is also exploring the international market. We have established good cooperation relationship with many importers in different countries and regions. Our company always adheres to the concept of technological innovation, owning economic and technical strength, and a high-quality management team. Since the establishment, we have adhered to the spirit of taking product quality as the foundation, market demand as the guidance, and creating value for customers as our own responsibility.
Type | Clip on hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
HOW TO MAINTAIN THE HINGE? This requires us to pay attention to the following points: 1. If found loose hinge or door plank is not neat, should immediately use tools to tighten or adjust. 2. Sharp or hard articles shall not bump against the hinge surface during product use, which will easily scratch the plating layer and lead to rust. 3. When opening and closing the cabinet door, avoid overexerting to prevent the hinge from being violently impacted and affecting the service life of the product. |
PRODUCT DETAILS
MOUNTING-PLATE
NO | 1 | 2 | 3 |
Hole | Two holes | Four holes | Two holes |
H value | H=0/2 | H=0/2 | H=0/2 |
Mounting dimension | 37mm | 37mm | 37mm |
type | Clip on | Clip on | 3d Clip on |
ALTERNATIVE SCREW TYPES
*M8 dowel Specification: 8x10mm |
*M10 dowel Specification: 10x10mm |
Specification: 6.3x14mm | *Wood screw Specification: 4x16mm |
QUICK INSTALLATION
According to the installation data, drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | According to the installation data, mounting base to connect the cabinet door. | |
By using a full scientific excellent administration method, great quality and fantastic religion, we get good reputation and occupied this discipline for Hydraulic Soft Close Hinge Cabinet Hinge. We uses the e-commerce system to strengthen and promote customer relationship management, customer business operation, customer service and information communication. According to the different application requirements of customers, we provide accurate and advanced various products and solutions.
