High-quality European Hinges - Discover the Perfect Hidden Gate Hinge Types from Trusted Manufacturers in China

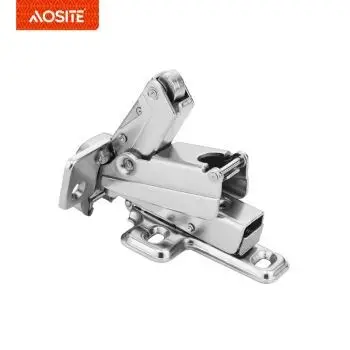

Type: Clip-on Special-angel Hydraulic Damping Hinge
Opening angle: 165°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood
Finish: Nickel plated
Main material: Cold-rolled steel
With strong production and manufacturing capabilities, our company has grown into a three-dimensional enterprise focusing on the research and development, production and sales of Tatami Cabinet Gas Spring, Handles Furniture, Furniture Gas Lift. We believe that when competing in the same industry, we should pay more attention to the core value of the customer's business philosophy, rather than just product prices. Over the years, we have been cultivating talents continuously, and we have formed an experienced, passionate, harmonious and united professional team.
|
Type |
Clip-on Special-angel Hydraulic Damping Hinge |
|
Opening angle |
165° |
|
Diameter of hinge cup |
35mm |
|
Scope |
Cabinets, wood |
|
Finish |
Nickel plated |
|
Main material |
Cold-rolled steel |
|
Cover space adjustment |
0-5mm |
|
The depth adjustment |
-2mm/ +3.5mm |
|
Base adjustment (up/down) |
-2mm/ +2mm |
|
Articulation cup altitude |
11.3mm |
|
Door drilling size |
3-7mm |
|
Door thickness |
14-20mm |
PRODUCT DETAILS
|
|
TWO-DIMENSIONAL SCREW The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable. |
|
CLIP-ON HINGE Gently pressing the button then will remove the base,avoiding damage the cabinet doors by multiple installation and remove.Clip can be more easier to install and clean. |
|
|
|
SUPERIOR CONNECTOR Adopting with high quality metal connector,not easy to damage. |
|
HYDRAULIC CYLINDER Hydraulic buffer makes a better effect of a quiet environment. |
|
INSTALLATION
|
|
||
|
According to the installation data, drilling at the proper position of the door panel. |
Installing the hinge cup. |
|
|
|
||
|
According to the installation data, mounting base to connect the cabinet door. |
Adjust back screw to adapt door gap, check opening and closing. |
Opening hole in cabinet panel, drilling hole according to the drawing.
|
|
WHO ARE WE? AOSITE always adheres to the philosophy of "Artistic Creations, Intelligence in Home Making". It is dedicated to manufacturing excellent quality hardware with originality and creating comfortable homes with wisdom, letting countless of families enjoy the convenience, comfort, and joy brought by household hardware. |
We are one of the best suppliers for Invisible European Inset Overlay Secret Hidden Gate Hinge Types Decorative Adjusting Heavy Duty Hidden Door Hinge in China, and provide customers with satisfied service. 'Quality First, Customer Paramount, Sincerity and Innovation' in our mind, We have achieved great progress in the past years. Our core business guide is, reap customer orders and trust, feedback the best quality and service!
