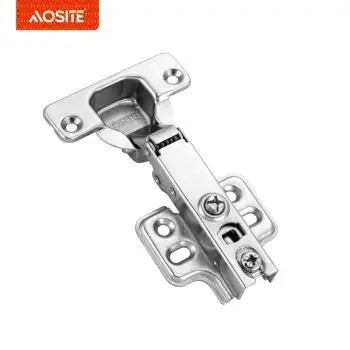

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers

Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

Our Gas Struts Lid Stay Lift, Tatami Hidden Handle, Metal Drawer Slides has earned the praise and support from customers with its superior quality, sensible price, integrity and excellent service. Item lists and detailed parameters and any other info weil be sent to you timely for the inquiries. We believe that professionalism will not become an obstacle to communication. Providing mature, efficient, simple and practical products is the prerequisite for creating new value.

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 2

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 3

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 4

Type	Inseparable hydraulic damping hinge
Opening angle	100°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	11.3mm
Door drilling size	3-7mm
Door thickness	14-20mm

A01 INVISIBLE HINGE:

Model A01 is one way inseparable hydraulic damping hinge, can automatic buffer closing.

PRODUCT DETAILS

HOW TO CHOOSE YOUR DOOR OVERLAYS

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 13

Full Overlay

This is the most common construction technique for cabinet doors.

You will be able to identify if your hinge is Full overlay.

The hinge arm is relatively straight with no "hump" or "crank".

The Cabinet Door overlaps close to 100% on the cabinet side panel.

The Cabinet Door does not share a side panel with any other cabinet door.

Half Overlay

Much less common but used where space saving or material cost concerns are most important.

This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features.

The hinge arm starts to bend inwards with a "crank" that offsets the door.

The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel.

The Cabinet Door does not share a side panel with any other cabinet door.

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 14

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 15

Inset/Embed

This is a technique of cabinet door production that allows the door to sit inside the cabinet box.

You will be able to identify that your hinges are Inset if:

The Hinge Arm is quite noticeably bent inwards or highly cranked.

The Cabinet Door does not overlap with the side panel but sits inside.

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 16

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 17

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 18

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 19

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 20

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 21

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 22

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 23

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 24

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 25

Concealed Door Hinge - Invisible Design from Furniture Hardware Manufacturers 26
