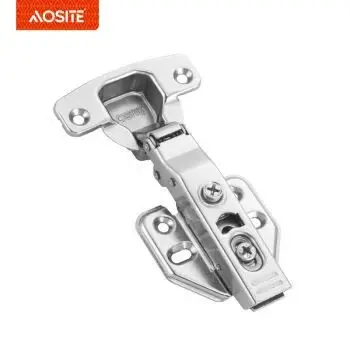

Soft-Closing Concealed Overlay Hinge for Kitchen Cabinets - Furniture Hardware Manufacturers
Model number:AQ-862
Type: Clip on hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel
We adhere to the concept of high quality, high requirements and high performance, and provide reliable Cabinet Slide, 3D Hinge, European Hinges and services to users. We are oriented to users with first-class products and first-class services. We are willing to work together with old and new friends from all walks of life to create a better tomorrow with a sincere attitude of cooperation. And we are able to enable on the lookout for any products with the customers' needs. We cultivate a consistent work style throughout the world, based on respect and openness towards each individual, both in our clients and in our own organization.
Type | Clip on hydraulic damping hinge(two-way) |
Opening angle | 110° |
Diameter of hinge cup | 35mm |
Scope | Cabinets, wood layman |
Finish | Nickel plated and Copper plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -3mm/+4mm |
Base adjustment(up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT ADVANTAGE: With removable plated. Good Anti-rust Ability. 48 Hours Salt-spray Test. FUNCTIONAL DESCRIPTION: The hinge has pass 48 hours salt spray test. It is strong rust resistance. Connecting parts through heat treatment, not easy to deformation. The plating process is 1.5μm copper plating and 1.5μm nickel plating. |
PRODUCT DETAILS
Two-dimensional screws | |
Booster arm | |
Clip-on plated | |
| 15° SOFT CLOSE | |
Diameter of hinge cup is 35mm |
WHO ARE WE? AOSITE supports basic hardware system to suit for different cabinet installations; It uses hydraulic damping technology to create a quiet household. AOSITE will be more innovative, making its greatest effort to establish itself as a leading brand in the field of household hardware in China! |
Our advancement depends on the superior gear, superb talents and consistently strengthened technology forces for Kitchen Hinge Kitchen Cabinet Hinge Concealed Door Hinge. We welcome buyers, business enterprise associations and good friends from all sections in the planet to get hold of us and request cooperation for mutual gains. Our company continues to increase equipment investment, introduces advanced production and testing equipment.
