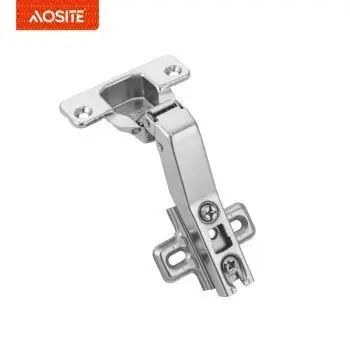

Simplified Angle Cabinet Hinge: 45° Hydraulic Hinge for Kitchen Window Cabinet Doors from Furniture Hardware Manufacturers
Type: Slide-on special-angle hinge (tow-way)
Opening angle: 45°
Diameter of hinge cup: 35mm
Finish: Nickel plated
Main material: Cold-rolled steel
Every single member from our higher effectiveness product sales staff values customers' requires and organization communication for hinge 90 degree, door handle stainless steel, Half Extension Drawer Slide. All along, our company do its best in product development and customer service, the concept of its good has won the industry's unanimous praise. Welcome clients from home and abroad to call and inquire! We provide specific product solutions and quotations. Our company casts superior management team in complicated internal and external affairs and cultivates unique corporate culture in the working environment of unity and cooperation and harmony.
Type | Slide-on special-angle hinge (tow-way) |
Opening angle | 45° |
Diameter of hinge cup | 35mm |
Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/ +3.5mm |
Base adjustment (up/down) | -2mm/ +2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
Testing | SGS test |
PRODUCT DETAILS
BT201 Slide On Special Angle Hinge (Two Way) 90°/45°
Adjustng the door front/ back The size of the gap is regulated by screws. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
AOSITE logo A clear AOSITE anti-counterfeit LOGO is found in the plastic cup. | Adjusting cover of door Left / right deviation screws adjust 0-5 mm. | ||
Hydraulic damping system Unique closed function, ultra quiet. | Booster arm Extra thick steel increase the work ability and service life. | ||
This type is self closing special angle hinge, having 30 /45/90 degree for your choice. About mounting plate we have both clip on and inseparable. Our standard Includes hinges, mounting plates. Screws and decorative cover caps are sold separately. On the structural classification, it is divided into: common and according to the place of use. The basic types are: furniture hinges can be divided into direct insertion type and self-unloading type according to different installation combinations. The difference between the two types is that when the fixing screw of the hinge base is twisted, the fixed type cannot release the hinge arm part, while the self-unloading type can release the hinge arm separately. Among them, the self-unloading type can be divided into sliding type and clamping type. The sliding type can release the hinge arm effect by loosening the screw on the hinge arm, while the clamping type can release the hinge arm more easily by hand. |
OUR SERVICE 1. OEM/ODM 2. Sample Order 3. Agency service 4. After-sales service 5. Agency market protection 6. 7X24 one-to-one customer service 7. Factory Tour 8. Exhibition subsidy 9. VIP customer shuttle 10. Material support (Layout design, display board, electronic picture album, poster) |
We have always insisted on seeking survival and development by quality, and constantly exploring the development field of Kitchen Window Cabinet Door Angle Hydraulic Hinge. Customer satisfaction and success are the most important yardsticks to measure our work performance. Our company has always insisted on pragmatic work to make customers feel at ease, innovative technology to meet customer requirements, good faith attitude to reach a win-win situation, to help the majority of users overcome technical difficulties. The development of our company is inseparable from the needs of the market and customers. We strictly control every detail and process technology in the manufacturing process, and work hard to meet customer needs.
