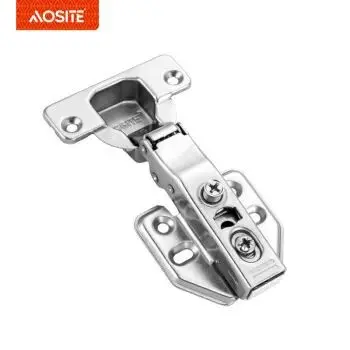

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers

Type: Clip on hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel

Inquiry

In order to further develop the market of our Slide On Angle Wardrobe Hinge 90°, 35mm Cup Hinge, Luxury Metal Drawer, we sincerely invite the community to cooperate, to mutually benefit, to create brilliant! Over the years, we have won the recognition of our customers and friends from all walks of life with good professionalism, superb technology and enthusiastic and efficient service. We welcome you to come and inspect! We guarantee long-term, safe, stable and reliable operation to meet the user's requirements. Our company always holds the principle of 'Profession, Devotion, Cooperation and Win-Win', continually provides clients with quality products and best services!

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 2

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 3

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 4

Type	Clip on hydraulic damping hinge
Opening angle	100°
Diameter of hinge cup	35mm
Pipe Finish	Nickel plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-2mm/+3.5mm
Base adjustment (up/down)	-2mm/+2mm
Articulation cup altitude	12mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT DETAILS

HOW TO CHOOSE
YOUR DOOR OVERLAYS

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 13

Full Overlay

This is the most common construction technique for cabinet doors.
You will be able to identify if your hinge is Full Overlay :
The Hinge Arm is relatively straight with no "hump" or "crank"
The Cabinet Door overlaps close to 100% on the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

Half Overlay

Much less common but used where space saving or material cost concerns are most important.
This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features:
The Hinge Arm starts to bend inwards with a "crank" that offsets the door
The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel
The Cabinet Door does not share a side panel with any other cabinet door

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 14

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 15

Inset/Embed

This is a technique of cabinet door production that allows the door to sit inside the cabinet box.
You will be able to identify that your hinges are Inset if:
The Hinge Arm is quite noticeably bent inwards or highly "cranked"
The Cabinet Door does not overlap with the side panel but sits inside

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 16

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 17

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 18

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 19

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 20

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 21

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 22

PRODUCT INSTALLATION

1. According to the installation data, drilling at the proper position of the door panel.

2. Installing the hinge cup.

3. According to the installation data, mounting base to connect the cabinet door.

4. Adjust back screw to adapt door gap, check opening and closing.

5. Check opening and closing.

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 23

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 24

Clip-On Furniture Hinge: Short Arm Hinge Cabinet Hinge from Furniture Hardware Manufacturers 25

We have modern machining equipment, complete testing methods, high-quality scientific and technological personnel, and rely on our professional level and mature experience in the field of Short Arm Hinge Arm Hinge Cabinet Hinge Bisagra to continuously provide customers with good products and services. In the future development process, we will continue to pursue excellent quality, sincerely serve customers and always guide the trend of the industry. Our products have won praise from customers in various industries for their stable quality and high cost performance. Our company sincerely welcomes people from all walks of life at home and abroad to patronize and negotiate business.

Hot Tags: clip on furniture hinge, China, manufacturers, suppliers, factory, wholesale, bulk, Brass Cabinets Handle, Three-section Slide Rail, Heavy Duty Drawer Slides, mini hinges, invisible concealed hinges, Clip On 3d Adjustable Hinge

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
