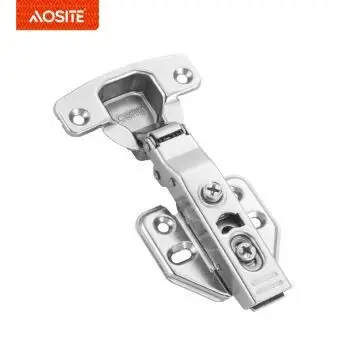

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers

Model number:AQ-862
Type: Clip on hydraulic damping hinge (two-way)
Opening angle: 110°
Diameter of hinge cup: 35mm
Scope: Cabinets, wood layman
Finish: Nickel plated and Copper plated
Main material: Cold-rolled steel

Inquiry

Our company has been committed to Cabinet Damper Hinge, 3D Hinge, T Bar Handle business for many years, covering many domestic and foreign markets. If you want develop any other new items, we can customize them to suit your needs. We ensure the supply of human resources for the healthy and large-scale development of the enterprise, achieving a win-win situation between talents and the enterprise.

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 2

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 3

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 4

Type	Clip on hydraulic damping hinge(two-way)
Opening angle	110°
Diameter of hinge cup	35mm
Scope	Cabinets, wood layman
Finish	Nickel plated and Copper plated
Main material	Cold-rolled steel
Cover space adjustment	0-5mm
The depth adjustment	-3mm/+4mm
Base adjustment(up/down)	-2mm/+2mm
Articulation cup altitude	12mm
Door drilling size	3-7mm
Door thickness	14-20mm

PRODUCT ADVANTAGE:

With removable plated.

Good Anti-rust Ability.

48 Hours Salt-spray Test.

FUNCTIONAL DESCRIPTION:

The hinge has pass 48 hours salt spray test. It is strong rust resistance. Connecting parts through heat treatment, not easy to deformation. The plating process is 1.5μm copper plating and 1.5μm nickel plating.

PRODUCT DETAILS

	Two-dimensional screws
Booster arm
	Clip-on plated
15° SOFT CLOSE
	Diameter of hinge cup is 35mm

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 10

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 11

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 12

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 13

WHO ARE WE?

AOSITE supports basic hardware system to suit for different cabinet installations; It uses hydraulic damping technology to create a quiet household. AOSITE will be more innovative, making its greatest effort to establish itself as a leading brand in the field of household hardware in China!

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 14

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 15

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 16

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 17

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 18

High-Quality Soft-Closing Overlay Hinge - Furniture Hardware Manufacturers 19

We specialize in Soft Closing Cabinet Hinge for Cabinet A109L production and have many years of experience in sales and service of related products so that we can serve customers well and respond quickly to customer needs. The products sell well all over the country and export many other countries and regions. We are looking forward to doing business with you.

Hot Tags: soft-closing overlay hinge, China, manufacturers, suppliers, factory, wholesale, bulk, drawer slide rollers and wheels, Hinge For Cabinet, Mini Glass Hinge, Drawer Slide Telescopic, cabinet knob handles, kitchen sliding drawer rack

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
