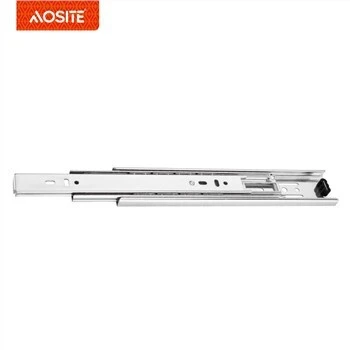

Heavy Duty Drawer Slides
Install Cabinet Members in Cabinet
· Notice how the screw holes for both the cabinet member and the drawer member are all in a line, centered on the drawer slide? So all we need to do is draw lines where we want the center of the drawer slides to be, and screw into our lines.
· Determine where you want the center of the drawer slide and make a mark. This can vary depending on where you want your drawer or how deep the drawer is. I do like to keep my slides close to where the drawer pull or handle is located when possible.
· Use a level to draw a line on the inside of the cabinet from your marks. Make the same line on both sides of the inside of the cabinet.
· Install the cabinet member of the drawer slide so screws are centered on your line.
· Use the screws inside the U shaped tabs if possible, as this will give you some adjustment if needed later.
· Inset Drawer Faces: Hold the drawer slides in the distance of your drawer face on the front, if using a drawer face.
· Overlay Drawer Faces: The drawer slides should be installed just slightly back from the front of the cabinet.
Force: 50N-150N
Center to center: 245mm
Stroke: 90mm
Main material 20#: 20# Finishing tube, copper, plastic
Pipe Finish: Electroplating & healthy spray paint
Rod Finish: Ridgid Chromium-plated
Optional Functions: Standard up/ soft down/free stop/ Hydraulic double step
Force: 25N 45N 65
Center to center: 358mm
Stroke: 149mm
Rob finish: Ridgid chrouium-plating
Pipe finish: Health paint surface
Main material: 20# Finishing tube
Opening angle: 100°
Diameter of hinge cup: 28mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
Model No.: KD
Product name: Tatami remote control electric lift
Loading capacity: 65KGS
Applicable panel: 18-25mm
Max height: 680mm/ 820mm
Min height: 310mm/ 360mm
Tolerance: ±3mm
Packing: 1 sets/ boxes
