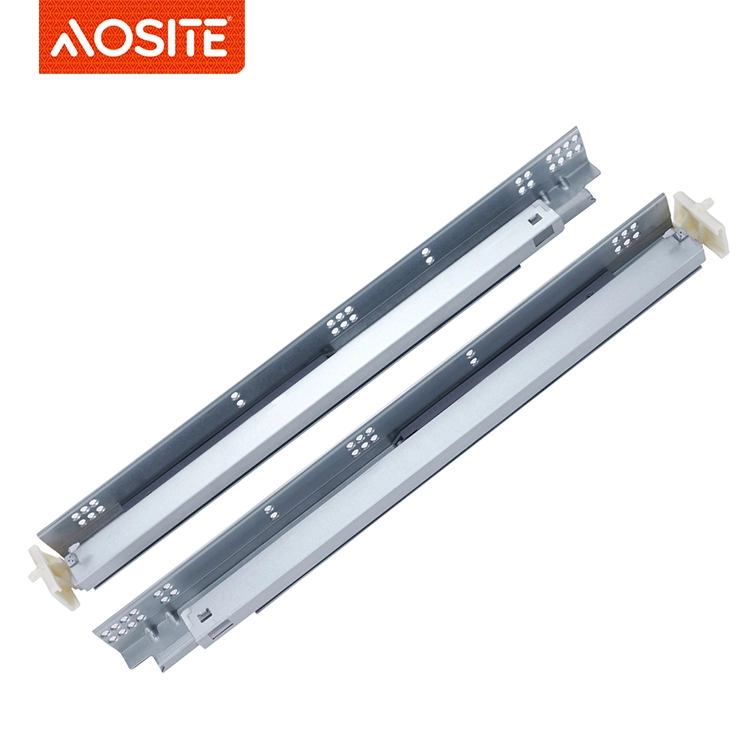

American Type Undermount Drawer Slide For Furniture Cabinet
* OEM technical support
* Loading capacity 30KG
* Monthly capacity 1000000 sets
* Sturdy and durable
* 50000 times cycle test
* Quiet and smooth sliding
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT OVERVIEW
Undermount drawer slides are innovative drawer hardware that revolutionizes the way drawers are mounted in furniture. They are also called undermount slides or concealed runners as they are not visible when the drawer is closed. They are a great alternative to traditional drawer slides that use side or bottom-mounted runners, which can be unsightly and limit the drawer's capacity.Undermount drawer slides are designed to be mounted underneath the drawer box and attach to the sides of the cabinet. This configuration creates a smooth glide without any visible hardware.
SPECIFICATIONS
|
Product name |
American type full extension undermount drawer slides(with 3D switch) |
|
Main material |
Galvanized steel |
|
Loading capacity |
30kg |
|
Thickness |
1.8*1.5*1.0mm |
|
Length |
12’’-21’’ |
|
Color optional |
Grey |
|
Package |
1 set/poly bag;10 sets/carton |
PRODUCT FEATURES
Three-section full extension design
The display space is large, the drawers are clear at a glance, and the retrieval is convenient
Drawer back panel hook
Humanized design to prevent the drawer from sliding inward
Porous screw design
According to the installation needs of the track, select the appropriate mounting screws
Built-in damper
Damping buffer design, for silent pulling and smooth, closing silently
Iron/Plastic buckle is available
Iron buckle or plastic buckle can be selected according to the required installation adjustment method to improve the convenience in use.
30KG max super dynamic loading capacity
30KG dynamic loading capacity, high-strength embracing nylon roller damping ensures that the drawer is stable and smooth even under full load.
CERTIFICATE
1 (25)
2 (23)
3 (19)
2 (17)
3 (13)
INSTALLATION
PRODUCT PACKAGING
7 (8)
6 (9)
FAQ
1
What is your factory product range?
Hinges, Gas spring, Tatami system, Ball bearing slide, Handles
2
Do you provide samples? Is it free or extra?
Yes, we provide free samples
3
How long does the normal delivery time take?
About 45 days
4
What kind of payments does support?
T/T
5
Do you offer ODM services?
Yes, ODM is welcome
6
How long is the shelf life of your products?
More than 3 years
7
Where is your factory, can we visit it?
Jinsheng Industry Park, Jini Town, Gaoyao District, Zhaoqing, Guangdong, China
