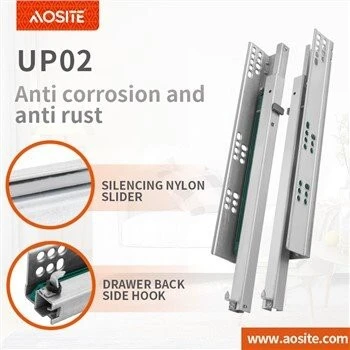

Concealed Slide Rail1
The following hidden drawer slides have some advantages and characteristics:
1. The concealed slide rail uses a longer and thicker damper, which has a longer buffer stroke than the traditional second-generation damping slide rail. When the drawer is closed, the cushioning experience is better.
2. The concealed slide rail can be disassembled after installation. It is more convenient to install and debug than the second-generation slide rail. After installation, due to the cleaning needs of the drawer, non-professionals can also adjust the handle to easily disassemble and install the drawer.
3. The concealed slide rail is made of galvanized steel, no electroplating process is required, no pollution to the production environment and the home environment, and it is green!
The concealed slide rail is divided into two concealed slide rails and three concealed slide rails. The regular size ranges from 10 inches to 22 inches. Generally, 10 inches to 14 inches are mainly used on the drawers of bathroom cabinets, and 16 inches to 22 inches are mainly used on cabinets and wardrobe drawers.
PRODUCT DETAILS
Hole distance: 48mm
Diamater of hinge cup: 35mm
Depth of hinge cup: 12mm
Type: Push open three-folds ball bearing slide
Loading capacity: 45kgs
Optional size: 250mm-600 mm
Installation gap: 12.7±0.2 mm
Pipe Finish: Zinc-plated/ Electrophoresis black
Material: Reinforced cold rolled steel sheet
Thickness: 1.0*1.0*1.2 mm/ 1.2*1.2*1.5 mm
Function: Smooth opening, quiet experience
Setting the standard in home marking.
