Model NO.:C14
Force: 50N-150N
Center to center: 245mm
Stroke: 90mm
Main material 20#: 20# Finishing tube, copper, plastic
Pipe Finish: Electroplating & healthy spray paint
Rod Finish: Ridgid Chromium-plated
Optional Functions: Standard up/ soft down/ free stop/ Hydraulic double step
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Standard up/soft down/free stop/Hydraulic double step
What is the cabinet air support? Classification and function of cupboard air support
Cabinet Door Gas Spring belongs to a kind of cabinet hardware, which is used in the swing door of the hanging cabinet. Generally, air support is a separate charge item. Many consumers may not understand and feel that they can do without gas support.
1. What is cabinet air support?
Cabinet air support, also known as air spring and support rod, is a kind of cabinet hardware with functions of support, buffer, braking and angle adjustment.
2. Classification of cabinet air support
According to the application state of the cabinet air support, the spring can be divided into automatic air support series which make the door turn up and down slowly at a stable speed; Make the door in any position of the random stop series; There are also random stop air support, damper, etc. It can be selected according to the cabinet function.
3. What is the working principle of cabinet air support?
The thick part of the air support in the cabinet is called the cylinder, which is filled with inert gas or oily mixture with a certain pressure difference from the external atmospheric pressure in the closed cylinder, and then uses the pressure difference acting on the cross section of the piston rod to complete the free movement of the air support. The biggest difference between air support and general mechanical spring is that:
Generally, the elastic force of mechanical spring changes greatly with the extension and shortening of the spring, while the force value of Cabinet Door Gas Spring basically remains unchanged in the whole stretching movement.
4. What is the function of cabinet air support?
Cabinet air support is a hardware accessory that supports, buffers, brakes and adjusts the angle in the cabinet. Cabinet air support has considerable technical content, the performance and quality of products affect the quality of the whole cabinet.
PRODUCT DETAILS

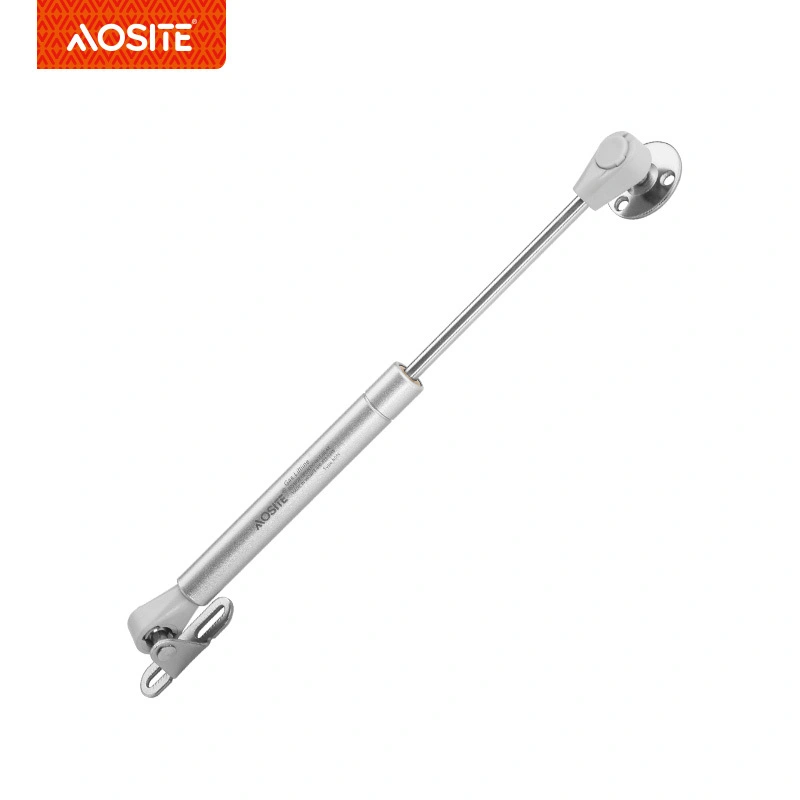

C14 Gas Struts Pneumatic Lift
AND USAGEPRODUCT ITEM NO.
C14-301
Usage: turn on the steam-driven support
Force Specifications: 50N-150N
Application make the right turn on the weight of wooden/aluminum frame doors reveal a steady rate slowly upward
C14-302
Uses: Hydraulic next turn support
Application: can the next turn wooden/aluminum door frame slow steady downward turn
C14-303
Usage:tum onthe steam-driven supportof
any stopForce Specifications:50N- 120N
Application:make the right turn on the
weight ofwooden/ aluminum frame door
30·-90 between the opening angle of any
intention to stay.
C14-304
Uses:Hydraulic Flip Support Force Specifications:
50N- 150N
Application:make the right turn on the weightof
wooden/ aluminum frame door slowly tilting
upward,and 60·-90 in the angle createdbetween
the opening buffer.
OUR SERVICE
*After the customer bought the product, there were problems in the use process, resulting in the normal use of the product. After-sales service for you.
*Product Patent Protection of Market Uniqueness, standardize online retail and wholesale price protection. Agency market protection service for you.
*Would like more information about our company, Factory Tour service is for you.
Force
50N-150N
Center to center
245mm
Stroke
90mm
Main material 20#
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Ridgid Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.
1、 What is cabinet air support
Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.
2、 How it works
The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.
3、 Shopping skills
Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.
PRODUCT DETAILS
PRODUCT ITEM NO.
AND USAGE
C15-301
Usage: turn on the steam-driven support
Force Specifications: 50N-150N
Application:make the right turn on the weight
of wooden/aluminum frame doors reveal a
steady rate slowly upward.
C15-302
Uses: Hydraulic next turn support
Application: can the next turn wooden/aluminum
door frame slow steady downward turn.
C15-303
Usage: turn on the steam-driven support of
any stop
Force Specifications: 50N-120N
Application:make the right turn on the weight
of wooden/ aluminum frame door 30°-90°
between the opening angle of any intention to
stay.
C15-304
Uses: Hydraulic Flip Support
Force Specifications: 50N-150N
Application: make the right turn on the weight of
wooden/aluminum frame door slowly tilting
upward, and 60°-90° in the angle created between
the opening buffer.
OUR SERVICE
The service life is calculated by the number of times it can be fully expanded and contracted. Finally, the force value changes during the stroke. The ideal gas spring should keep the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes.
The magnitude of change is an important criterion for measuring a ring with good quality of gas spring. The smaller the magnitude of change, the better the quality of gas spring, and the worse the reverse.
Product name: Free stop gas spring
Thickness of panel: 16/19/22/26/28mm
Panel 3D adjustment: +2mm
Height of cabinet: 330-500mm
Width of cabinet: 600-1200mm
Material: Steel/plastic
Finish: Nickel plating
Applicable scope: Kitchen hardware
Style: Modern
Product features
1. Perfect design for decorative cover
Achieve beautiful installation design effect, save space with fusion cabinet inner wall
2. Clip-on design
Panels can be quick assemble & disassemble
3. Free stop
The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.
4. Silent mechanical design
The damping buffer makes the gas spring gently and silently flip up
Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.
Standard-make good to be better
ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.
Service-Promising Value You Can Get
24-hour response mechanism
1-to-1 all-round professional service
INNOVATION-EMBRACE CHANGES
Persist in the innovation leading, the development
FAQS:
1. What is your factory product range?
Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.
2. Do you provide samples? Is it free or extra?
Yes, we provide free samples.
3. How long does the normal delivery time take?
About 45 days.
PRODUCT OVERVIEW
The soft-up gas spring is an ideal solution for kitchen cabinets, as it offers unmatched convenience during installation. With its simple design, this spring fits easily into the cabinet structure and provides a smooth and controlled opening and closing action. Its durability ensures that your cabinet doors will op erate flawlessly for years to come and require minimal maintenance. Whether you're a professional installer or a DIY enthusiast, the soft-up gas spring is an essential accessory that will make your kitchen cabinets more functional and efficient.
SPECIFICATIONS
Product name
Soft Up Gas Spring For Furniture Cabinet
Force
20N-150N
Center to center
245mm
Stroke
90mm
Main material
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
PRODUCT FEATURES
Refined copper guide
Superb process copper guide,ensure life more than 50,000 times
Healthy spray paint surface
Ingenuity design,the use of advanced environmental spray paint surface treatment,to ensure that no harmful substances to human body
Durable double loop power
Double ring dynamic structure is adopted inside the gas support.The operation is perfect,mute and service life.Also greatly improved
Easy dismantling head
Combination of installation and disassembly method,simple installation,easy disassembly,even if it is the first time to buy people will be easy to start
Drawer handle is an important part of drawer, so the quality of drawer handle is closely related to the quality of drawer handle and whether the drawer is convenient to use. How do we choose drawer handles? 1. it is best to choose drawer handles of well-known brands, such as AOSITE, so as to...
AOSITE full extension push to open undermount drawer slide, with its high-quality material, strong load-bearing capacity and intelligent rebound device, creates a smooth, convenient and durable drawer experience for you. This drawer slide becomes your right-hand man for home storage, and helps your better life.
Type: Tatami free stop gas spring
Force: 80N-180N
Center to center: 358mm
Stroke: 149mm
Rod finish: Ridgid chromium plating
Pipe finish: Health paint surface
Main material: 20# Finishing tube
Manufacturers provide several options to add a touch of luxury to a drawer slide’s operation. Manufacturers provide several options to add a touch of luxury to a drawer slide’s operation. Soft-close slides slow the drawer as it closes, ensuring that it doesn’t slam. Self-closing slides take the...
Loading capacity: 35kgs
Length: 250mm-550mm
Function: With automatic damping off function
Applicable scope: all kinds of the drawer
Material: Zinc plated steel sheet
Tnstallation: No need for tools, can quickly install and remove the drawer
