Aluminum Frame Hinge

As minimalism becomes more and more popular, aluminum-framed doors have become an important choice in the home. Life scenes such as aluminum-framed closets, wine cabinets, tea cabinets and so on have turned their eyes to different materials. AOSITE

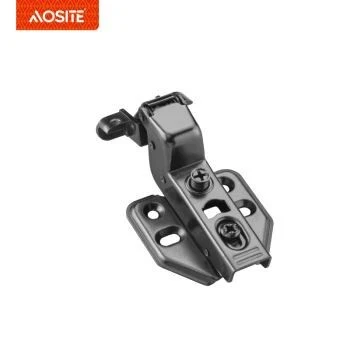

As minimalism becomes more and more popular, aluminum-framed doors have become an important choice in the home. Life scenes such as aluminum-framed closets, wine cabinets, tea cabinets and so on have turned their eyes to different materials. AOSITE AQ88 hinge is fixed with aluminum frame hydraulic damping hinge. The introduction of ultra-high cost performance makes the hinge and aluminum frame wardrobe natural, giving people a kind of beautiful visual enjoyment and deducing the aesthetic life of the new era with new quality doctrine.

Fixed aluminum frame hydraulic damping hinge with color value, adjustment, bearing, damping and antirust functions.

Product Advantage: Aluminum Frame Head Weights

The stress is stronger.

Good stability

Unfavorable fracture

Durable

Oversize adjustment

Four-way adjustment of front and back, left and right, front and back adjustment up to 9mm

Quieter with Damping

External damping technology for extreme mute effect

Super antirust

Choose high-quality steel, four-layer electroplating process

Super load bearing

Bold rivet link, vertical bearing 40KG

Opening angle: 99-101 degrees

Thickness of aluminum frame door: 17-21MM

Cover position adjustment: 0-7MM

Thickness of aluminum frame cup head: 11MM

Depth adjustment: +4.5MM/-4.5MM

Up and down adjustment: +2MM/-2MM

Base material: 1.0MM thick plated agate black

Aluminum frame head: zinc alloy
