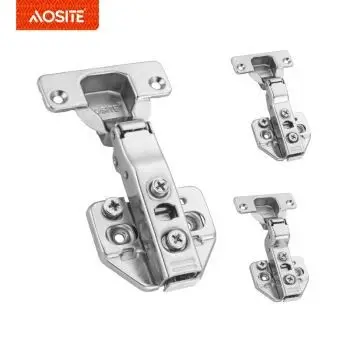

Furniture Hardware Manufacturers of Advanced 3D Concealed Door Hinges

We will continue to manufacture the best Special Angle 45° Hinge, Cabinet Handle, Noble Classical Handle in the industry that will delight our customers and make our employees incredibly proud of their work. We adhere to the concept of 'quality first, reasonable price, and service first', provide customers with continuously upgraded products and maximize profit margins for them so as to seek win-win suituation. Our company has advanced production technology and coupled with strict management rules and regulations.

Our common hinges are divided into buffer hinges and universal hinges. The cabinet door with ordinary hinges will be closed immediately when it is closed, because the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

e the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

 The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

PRODUCT DETAILS

OPTIONAL HINGE HOLE DISTANCE PATTERN

	45mm Hole Distance 45mm Hole distance is the most common hinge cup pattern for European style hinges Almost all of the major Hinge manufacturers selling European style hings in including Blum, Salice, and Grass are with this hinge cup pattern Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm Distance between screw ho for dowels) is 45mm Center of screws dowels) is 9. 5mm offset from the hinge cup center.
48mm Hole Distance 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, salice, and Grass.These be very difficult to source as replacements in North America. it is recommended to switch to a more commonly cup type that case. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes or dowels)s 48mm Center of screws (dowels) is 6mm offset from the hinge cup center.
	52mm Hole Distance 52mm Hole distance is a less common hinge cup pattern used by some cabinet makers, but it' s most popular in Korea market. This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes/ dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.

With outstanding performance in technology and service, we have now provided high-quality 3D Concealed Door Hinges and perfect after-sales service to a large number of customers in the industry. Our company is recognized by the industry for the high-quality products, reasonable prices, and honest service. Our highly specialized process eliminates the component failure and offers our customers unvarying quality, allowing us to control cost, plan capacity and maintain consistent on time delivery.
