The performance of our door hinge, Tatami Hidden Handle, quadro drawer slides is unmatched, and it completely solves the problems of high operating cost, low work efficiency and difficult after-sales service in the operation of traditional product. Based on our own reality, we have carried out a series of effective corporate culture construction activities to enhance employees' loyalty to the company. Facing the competition in the industry, we have always maintained the business philosophy of 'making first-class products and creating first-class enterprises', constantly innovating technology, updating equipment, and improving ourselves. Since integrity is the foundation of human beings and the root of business, it becomes the cornerstone of our strong brand. Under the new normal of economic development, we need to maintain innovation in order to provide customers with products and services that conform to the development of the times.

Our common hinges are divided into buffer hinges and universal hinges. The cabinet door with ordinary hinges will be closed immediately when it is closed, because the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

e the cabinet body will make a lot of noise when colliding with the cabinet door. Long-term use will cause the hinges to deform or loosen and damage the cabinet door to varying degrees such as paint peeling and cracking.

 The buffer hinge has a buffer function when the cabinet door is closed. The cabinet door will be closed slowly to reduce noise and damage to the cabinet door. If there are old people and children in the home, the accident of hand clipping of the cabinet door can be avoided.

After installation, the hinge can be adjusted for simple front-to-back distance between the door panel and the cabinet door. However, the height of the cover plate cannot be adjusted. If the hinge installation deviates from the normal size and is high or low during installation, fine adjustment cannot be performed. Therefore, the hinge belongs to 3D adjustable hinge.

How to adjust in three dimensions:

Front and rear adjustment: adjusting screws can change the clearance between the door panel and the side panel of the cabinet body

Left and right adjustment: adjusting screws can change the coverage of the door panel relative to the side panel of the cabinet body

Up and down adjustment: adjusting screw can correct the vertical and up and down clearance of door panel.

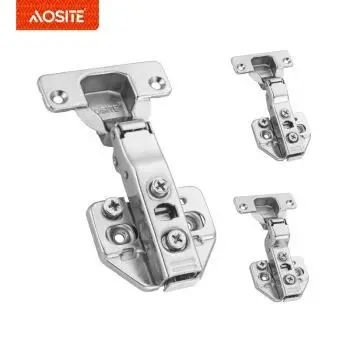

PRODUCT DETAILS

OPTIONAL HINGE HOLE DISTANCE PATTERN

	45mm Hole Distance 45mm Hole distance is the most common hinge cup pattern for European style hinges Almost all of the major Hinge manufacturers selling European style hings in including Blum, Salice, and Grass are with this hinge cup pattern Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm Distance between screw ho for dowels) is 45mm Center of screws dowels) is 9. 5mm offset from the hinge cup center.
48mm Hole Distance 48mm Hole distance is the most common hinge cup pattern used by Chinese (imported) cabinet makers. This is also a common universal standard for other major Hinge manufacturers in areas outside North America, including Blum, salice, and Grass.These be very difficult to source as replacements in North America. it is recommended to switch to a more commonly cup type that case. Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes or dowels)s 48mm Center of screws (dowels) is 6mm offset from the hinge cup center.
	52mm Hole Distance 52mm Hole distance is a less common hinge cup pattern used by some cabinet makers, but it' s most popular in Korea market. This pattern is mainly for compatibility with some European hinge brands like Hettich and Mepla Diameter of the hinge cup or "boss" that inserts into the cabinet door is 35mm. Distance between screw holes/ dowels is 52mm. Center of screws (dowels) is 5.5mm offset from the hinge cup center.

We have modern machining equipment, complete testing methods, high-quality scientific and technological personnel, and rely on our professional level and mature experience in the field of 3D Soft Close Clip on Cabient Hinge to continuously provide customers with good products and services. Through the continuous pursuit of quality and technology, we have a one-stop production process and become a company trusted by domestic and foreign partners. On the basis of honesty and trustworthiness, we have been considering how to meet customer needs, and have strengthened quality and product power with variety. We try our best to create a situation in which truth-seeking and honesty, unity and innovation, and customers benefit, and seek common development with all partners.
