Invisible Table Hinge: Zinc Alloy Drop Flap Hinge for Sale - Furniture Hardware Manufacturers
Type: Inseparable hydraulic damping hinge
Opening angle: 100°
Diameter of hinge cup: 35mm
Pipe Finish: Nickel plated
Main material: Cold-rolled steel
We believe that we are destined to be the best supplier of Three-fold Soft Closing Ball Bearing Slides, Glasses Hinges, Slide-on Hinge in the market since we have excellent quality products and first-class services. We know that the needs of customers are our work direction and goal. We are confident to be your wise choice and look forward to your cooperation to create a better tomorrow! If you have any comments about our company or products, please feel free to contact us, your coming mail will be highly appreciated.
Type | Inseparable hydraulic damping hinge |
Opening angle | 100° |
Diameter of hinge cup | 35mm |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+3mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 11.3mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |

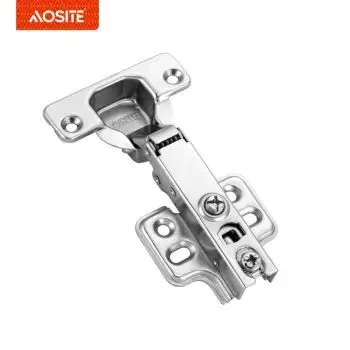

A01 INVISIBLE HINGE: Model A01 is one way inseparable hydraulic damping hinge, can automatic buffer closing. |
PRODUCT DETAILS
HOW TO CHOOSE YOUR DOOR OVERLAYS
Full Overlay This is the most common construction technique for cabinet doors. You will be able to identify if your hinge is Full overlay. The hinge arm is relatively straight with no "hump" or "crank". The Cabinet Door overlaps close to 100% on the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Half Overlay Much less common but used where space saving or material cost concerns are most important. This technique uses the same side panel for two cabinets. To achieve this you would need a hinge that provides these features. The hinge arm starts to bend inwards with a "crank" that offsets the door. The Cabinet Door only overlaps a bit less than 50% of the cabinet side panel. The Cabinet Door does not share a side panel with any other cabinet door. | |
Inset/Embed This is a technique of cabinet door production that allows the door to sit inside the cabinet box. You will be able to identify that your hinges are Inset if: The Hinge Arm is quite noticeably bent inwards or highly cranked. The Cabinet Door does not overlap with the side panel but sits inside. |
Our firm aims to operating faithfully, serving to all of our shoppers, and working in new technology and new machine consistently for Zinc Alloy Drop Flap Hinge Invisible Table Hinge. Furthermore, our company possesses modernized management system and all-round after-sales service network, accordingly has great competitive power in the market. At the same time of economic development, our company vigorously promotes the construction of corporate culture, cultivates the common values and sense of honor of employees.
