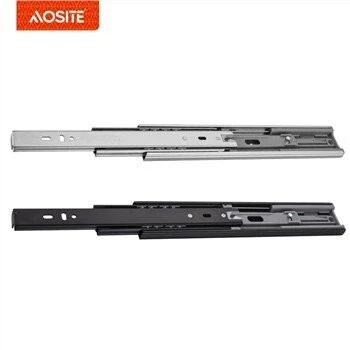

Drawer Slide Soft Close
Steps1 Mark the Placement of the Slides
Measuring from the inside floor of the cabinet, mark a height of 8¼ inches near the front and back of each side wall. Using the marks and a straightedge, draw a level line across the wall on each inside wall of the cabinet. Make a mark on each line that’s 7/8 inch from the front edge of the cabinet. This allows room for the thickness of the drawer front plus an 1/8-inch inset.
Steps 2. Position the Slides
Align the bottom edge of the first slide above the line, Position the front edge of the slide behind the mark near the face of the cabinet.
Steps 3. Install the Slides
Holding the slide firmly in place, push the extension forward until both sets of screw holes are visible. Using a drill/driver, drill shallow pilot holes in one screw hole near the front and back of the slide. Using the screws provided, mount the slide to the inside of the cabinet. Repeat steps 2 and 3 to mount the second drawer slide on the opposite side of the cabinet.
