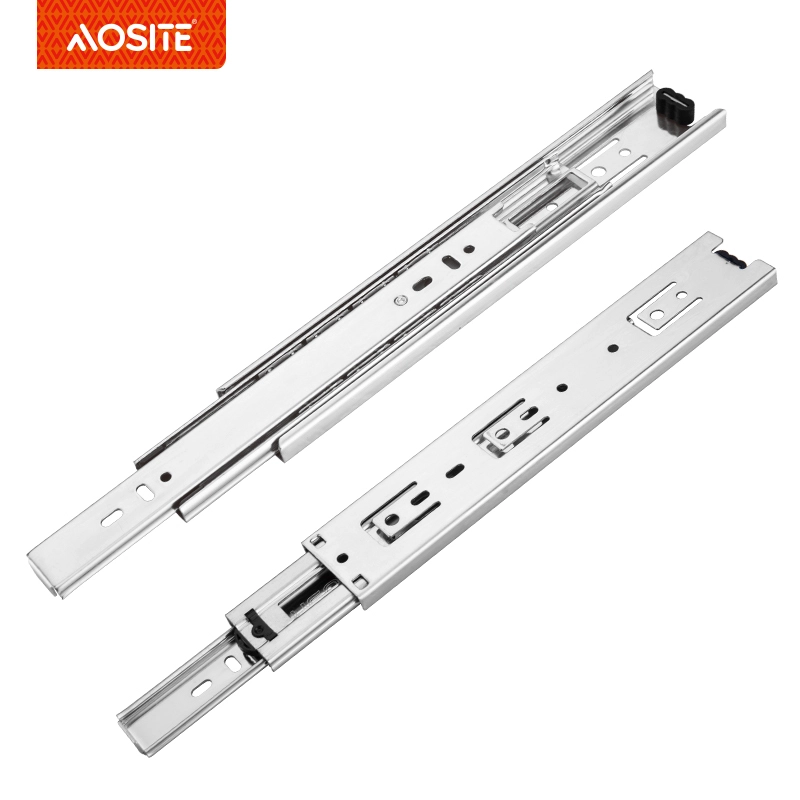

Three Fold Ball Bearing Slides For Kitchen Cabinet
Well-designed, comfortable and quiet ◎ Three-section full-pull design, providing more storage space ◎ Built-in damping system, buffer closing, smooth and mute, reduce noise during opening and closing, and make life more secure Good quality, durable ◎ Double-row high-precision solid steel balls,...
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
◎ Three-section full-pull design, providing more storage space
◎ Built-in damping system, buffer closing, smooth and mute, reduce noise during opening and closing, and make life more secure
Good quality, durable
◎ Double-row high-precision solid steel balls, push-pull smooth and silent
◎ The slide rail is made of thickened main raw materials, creating a user experience with strong load-bearing capacity and noise-free operation, high smoothness opening and closing, and more comfortable use process
◎ 45KG load bearing
The craftsmanship is just right, environmentally friendly and healthy
◎ Adopt cyanide-free galvanizing process, not easy to rust and wear, more corrosion-resistant, environmentally friendly and healthy
The application is just right, convenient and fast
◎ Quick disassembly switch for easy installation and disassembly
2 balls in a group opening smooth steadily, which can reduce the resistance.
Anti-Collision Rubber
Super strong anti-collision rubber, keeping safety in opening and closing.
Proper Splitted Fastener
Install and remove drawers through fastener, which is a bridge between slide and drawer.
Three Sections Extension
Full extension improve the utilization of drawer space.
Extra Thickness Material
Extra thickness steel is more durable and strong loading.
AOSITE Logo
Clear logo printed, certified products giarantee from AOSITE.
PRODUCT SHOW
*45KGS load bearing
*Three folds full extention design
*Firm ball bearing
*50thousands life test
*What are the thicknesses of steel ball slide rails? What are its functions respectively? What are the different plating colors?
Thickness: (1.0*1.0*1.2) (1.2*1.2*1.5)
Functions: 1. Ordinary three-section steel ball slide rail does not have buffer.
2. Three-section damping steel ball slide rail has buffer effect.
3. Three-section rebound steel ball slide rail.
Electroplating color: 1. Galvanizing. 2. Electrophoretic Black
Force
50N-150N
Center to center
245mm
Stroke
90mm
Main material 20#
20# Finishing tube, copper, plastic
Pipe Finish
Electroplating & healthy spray paint
Rod Finish
Ridgid Chromium-plated
Optional Functions
Standard up/ soft down/ free stop/ Hydraulic double step
When the door of the cupboard is opened or closed, the most important parts are hinges and air supports. Most users don't know about the air supports. Today, I'd like to introduce the working principle of cupboard air support.
1、 What is cabinet air support
Cabinet air support is used for cabinet component movement, lifting, support, gravity balance and mechanical spring instead of sophisticated equipment. It has been widely used in woodworking machinery. Pneumatic series gas spring is driven by high pressure inert gas, the supporting force is constant in the whole working stroke, and has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to ordinary spring, and has the advantages of convenient installation, safe use and no maintenance.
2、 How it works
The iron pipe is filled with high pressure gas, and there is a through hole on the moving piston to ensure that the pressure in the whole iron pipe will not change with the movement of the piston. The force of the pneumatic support rod is mainly the pressure difference between the iron pipe and the external atmospheric pressure acting on the cross section of the piston rod. The pneumatic support rod is driven by high pressure inert gas, and the support force is stable in the whole working stroke. It also has a buffer mechanism to avoid the impact in place, which is the biggest feature superior to the ordinary support rod. And it has the advantages of convenient installation, safe use and no maintenance. Since the air pressure in the iron pipe is constant and the cross section of the piston rod is fixed, the force of the pneumatic support rod remains stable throughout the stroke.
3、 Shopping skills
Product appearance: the paint color and greasy level of the air support cylinder end of the cabinet, such as some poor quality air support manufacturers ignore these small problems. Professional air support manufacturers pay attention to every detail of the product, so they can pay attention to it when they choose. Whether there are pits or scratches on the appearance of the air support rod will damage the sealing device inside the cylinder when it is used, so that the air support will leak after a period of time, resulting in that the air support can not be used without pressure.
PRODUCT DETAILS
PRODUCT ITEM NO.
AND USAGE
C15-301
Usage: turn on the steam-driven support
Force Specifications: 50N-150N
Application:make the right turn on the weight
of wooden/aluminum frame doors reveal a
steady rate slowly upward.
C15-302
Uses: Hydraulic next turn support
Application: can the next turn wooden/aluminum
door frame slow steady downward turn.
C15-303
Usage: turn on the steam-driven support of
any stop
Force Specifications: 50N-120N
Application:make the right turn on the weight
of wooden/ aluminum frame door 30°-90°
between the opening angle of any intention to
stay.
C15-304
Uses: Hydraulic Flip Support
Force Specifications: 50N-150N
Application: make the right turn on the weight of
wooden/aluminum frame door slowly tilting
upward, and 60°-90° in the angle created between
the opening buffer.
OUR SERVICE
The service life is calculated by the number of times it can be fully expanded and contracted. Finally, the force value changes during the stroke. The ideal gas spring should keep the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes.
The magnitude of change is an important criterion for measuring a ring with good quality of gas spring. The smaller the magnitude of change, the better the quality of gas spring, and the worse the reverse.
Product name: Free stop gas spring
Thickness of panel: 16/19/22/26/28mm
Panel 3D adjustment: +2mm
Height of cabinet: 330-500mm
Width of cabinet: 600-1200mm
Material: Steel/plastic
Finish: Nickel plating
Applicable scope: Kitchen hardware
Style: Modern
Product features
1. Perfect design for decorative cover
Achieve beautiful installation design effect, save space with fusion cabinet inner wall
2. Clip-on design
Panels can be quick assemble & disassemble
3. Free stop
The cabinet door can stay at the unfolding angle freely from 30 to 90 degrees.
4. Silent mechanical design
The damping buffer makes the gas spring gently and silently flip up
Multiple load-Bearing tests, 50,000 times trial tests, and high-strength anti-corrosion tests.
Standard-make good to be better
ISO9001 Quality Management System Authorization, Swiss SGS Quality Testing and CE Certification.
Service-Promising Value You Can Get
24-hour response mechanism
1-to-1 all-round professional service
INNOVATION-EMBRACE CHANGES
Persist in the innovation leading, the development
FAQS:
1. What is your factory product range?
Hinges, gas spring, ball bearing slide, under-mount drawer slide, metal drawer box, handle.
2. Do you provide samples? Is it free or extra?
Yes, we provide free samples.
3. How long does the normal delivery time take?
About 45 days.
PRODUCT OVERVIEW
This three-section steel ball drawer slide is known for its strength and durability. Its robust construction ensures that it can withstand heavy loads and regular use without bending or warping. The steel ball bearings provide smooth and effortless operation, while the latch mechanism keeps the drawer securely in place. This makes it an ideal choice for use in cabinets and drawers in high traffic areas such as kitchens and workshops. Additionally, the rust-resistant coating ensures longevity and protects against wear and tear. With its superior quality, this steel ball drawer slide is a reliable choice for any application.
SPECIFICATIONS
Product name
Three Fold Ball Bearing Slides For Kitchen Cabinet
Loading capacity
35KG/45KG
Length
300mm-600 mm
Installation clearance
12.7±0.2 mm
Applicable scope
All kinds of the drawer
Material
Zinc-plated steel sheet
Function
With automatic damping off function
PRODUCT FEATURES
Smooth steel ball
Double rows of 5 steel balls each to ensure smoother push and pull
Cold rolled steel plate
Reinforced galvanized steel sheet,35-45KG load bearing,firm and not easy to deform
Anti collision POM granules
Anti collision mute granules,make the drawer close softly and quietly
