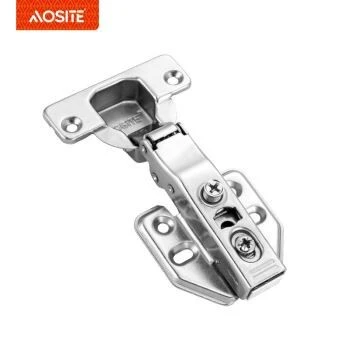

Clip On Damping Hinge
Type | Clip on hydraulic damping hinge |
Door thickness | 100° |
Diameter of hinge cup | 35mm |
Scope | Cabinets,wood layman |
Pipe Finish | Nickel plated |
Main material | Cold-rolled steel |
Cover space adjustment | 0-5mm |
The depth adjustment | -2mm/+2mm |
Base adjustment (up/down) | -2mm/+2mm |
Articulation cup altitude | 12mm |
Door drilling size | 3-7mm |
Door thickness | 14-20mm |
PRODUCT DETAILS
HOW TO CHOOSE
YOUR DOOR OVERLAYS
FULL OVERLAY The full cover is also called straight bending and straight arms. | Door panel covers the side panel The cover is suitable for the cabinet body which covers the side panels. |
Half overlay Half cover is also called middle bend and small arm. | Door panel covers half of the side panel The cupboard door covers the side plate ,half of which has doors on both sides of the cabinet. |
| |
Inset No cap,also called big bend,big arm. | Door panel don’t covers the side panel The door is not covered by the cabinet door,and the cabinet door is inside the cabinet. |
| | ||
According to the installation data, drilling at the proper position of the door panel | Installing the hinge cup. | |
According to the installation data, mounting base to connect the cabinet door. | Adjust back screw to adapt door gap,check opening and closing. | Check opening and closing. |
2. Fixed appearance design
3. The built-in damping
Cabinet height: 600mm-800mm
Cabinet width: Under 1200mm
Minimum cabinet depth: 330mm
Trait: Easy installation and adjustment
