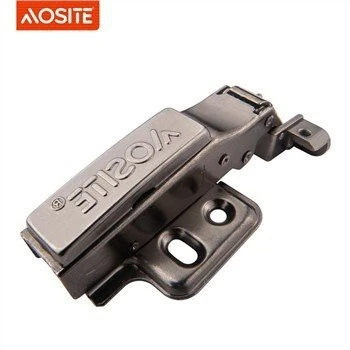

Inseparable Damping Hinge For Aluminum Frame Door
Product name: inseparable aluminum frame hydraulic damping hinge
Opening angle: 100°
Hole distance: 28mm
Depth of hinge cup: 11mm
Overlay position adjustment (Left & Right): 0-6mm
Door gap adjustment (Forward & Backward): -4mm/+4mm
Up & Down adjustment: -2mm/+2mm
Door drilling size(K): 3-7mm
Door panel thickness: 14-20mm
Detail display
a. Quality steel
Selection of cold rolled steel, four layers electroplating process, super rust
b. Quality booster
Thickened shrapnel, durable
c. Choose from the German standard springs
High quality, not easy to deformation
Inseparable hinge
Shown as diagram, put the hinge with base on the door fix the hinge on the door with screw. Then the assembling us done. Disassemble it by loosening locking screws. Shown as diagram.
Hinge adjustment
Depth adjustment
Rotate depth screw to adjust door gap.
Adjustment range: 6mm
Overlay adjustment
Rotate lateral screw to increase or decrease door overlay.
Adjustment range: 6mm
Height adjustment
Adjust the mounting palte on panel to adjust the door’s height
Notice: the reference adjustment range is the product design range, the actual size of the cabinet and the drilling method may have a certain impact on the parameters.
