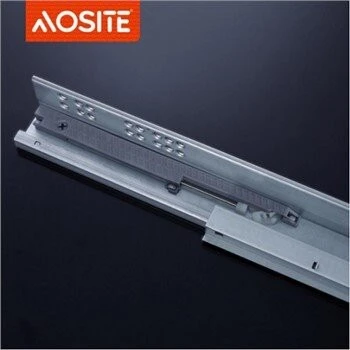

Three-section Hidden Slide Rail

1. The surface is flat and smooth, the structure is thick, and it is not easy to sink. The multi-dimensional guiding performance of the rolling ball makes the push-pull of the product smooth, silent and small swing.

2. The material is thick and the bearing capacity is strong. The new generation of three section hidden slide rail can bear up to 40kg. The load-bearing movement is still easy to open and close without blocking. It is smooth and durable between push and pull.

3. The rotary spring structure is adopted to reduce the change of spring force. It is easy and flexible when pulling out, and the idle force is enough to make the drawer move freely and safely.

4. The decoupling design of damping components is adopted to reduce the impact force, so as to achieve soft closing and ensure the quiet effect of movement.

5. Add anti sinking wheel on the fixed rail to support the movable rail under load, so as to ensure the effective and correct cooperation between the reset hook and the damping assembly during the opening and closing movement of the movable rail.

6. Three section rail design, built-in synchronization in the hidden slide rail, so that the outer rail and the middle rail can be linked synchronously to avoid the collision between the outer rail and the middle rail during pulling, and the drawer movement is quieter.

7. Optimize the arrangement of balls and rollers, lengthen the length of rollers, increase the number of balls and rollers, and the combination of plastic and steel to effectively enhance the load-bearing capacity.

8. The surface is not easy to be scratched. It is isolated from the direct contact between air and slide rail. It has experienced 48 hour salt spray test and has strong corrosion resistance.

9. Without tools, just gently push the automatic buckle with your fingers and press the handle to install and remove the drawer, which is simple and convenient.

10.The fixed rail mounting hole is designed scientifically, taking into account all installation parameters in the market. Add horizontal and vertical long adjustment holes to accommodate errors during installation.
